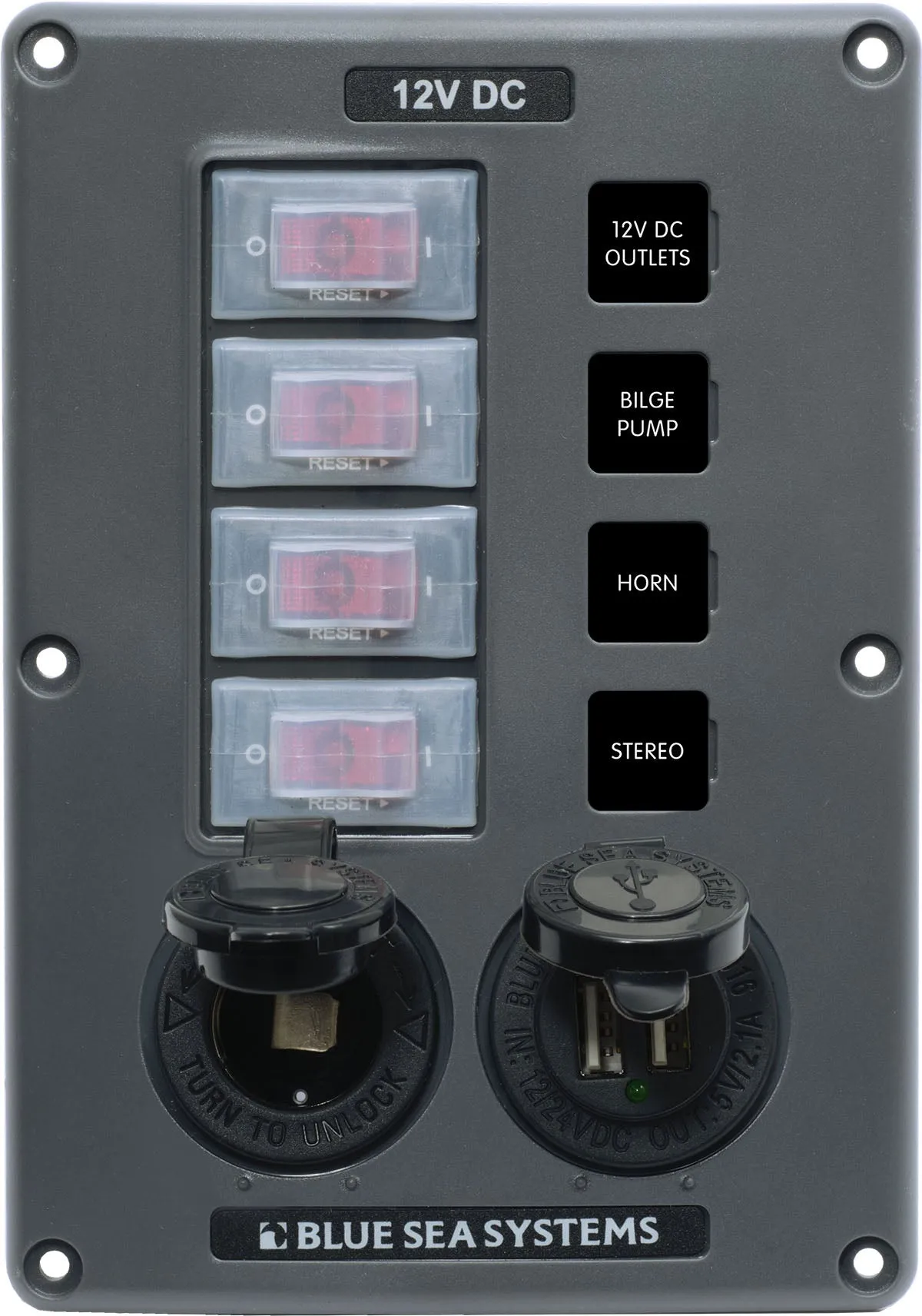

Designed for exposed mounting applications
Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
Industry-standard sizes and mounting allow these panels to be easily retrofitted in an existing application
Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
Silicon breaker boots and gasket protects against water ingress
Low profile makes it easy to install in tight spaces
Fast-on circuit breaker connectors make it quick to wire

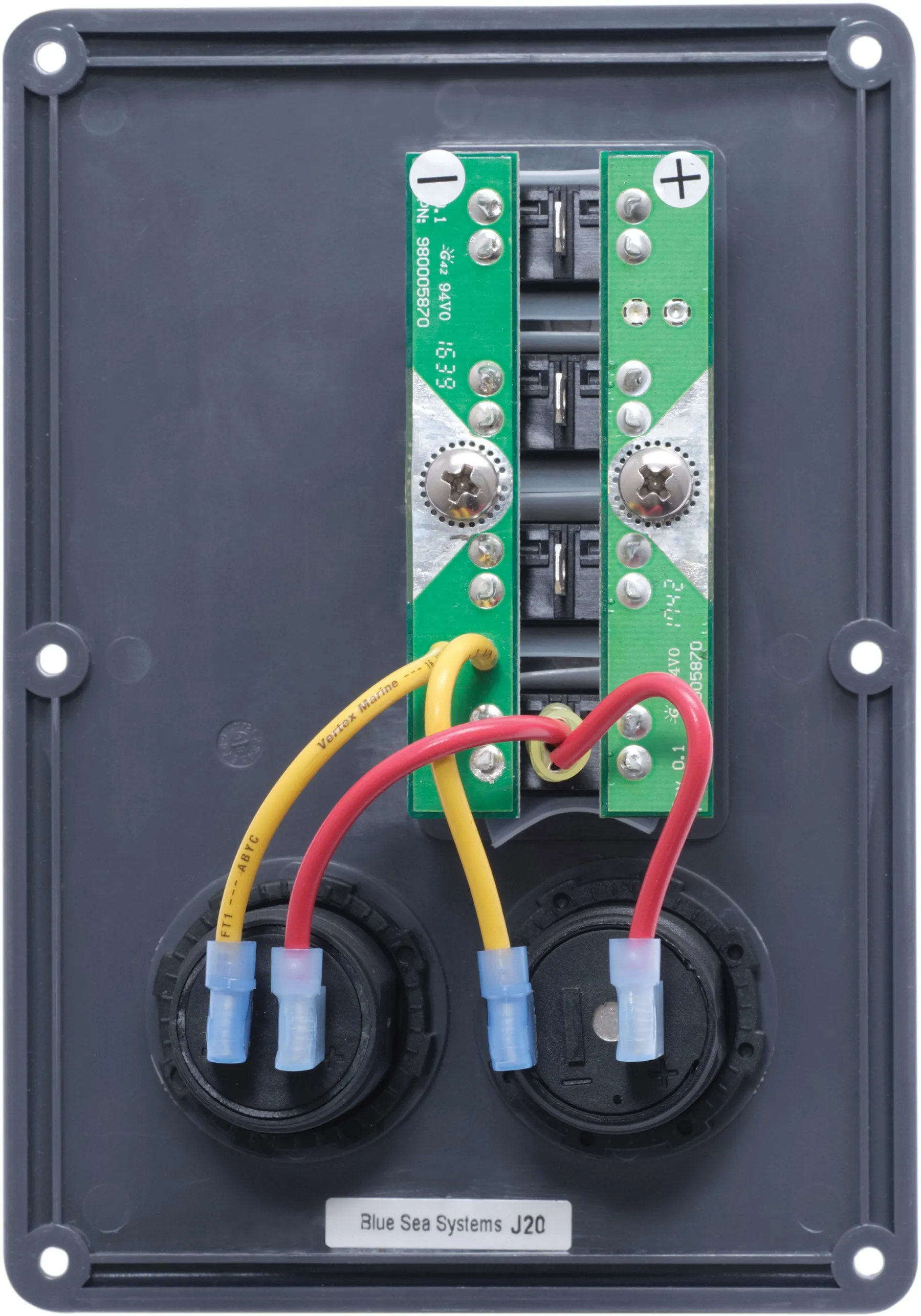

Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
| Specifications | |
|---|---|
| Color | Gray |
| Positions | 4 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 45A |
| Terminal Type | 1/4" Male quick connect |
| Hardware | Stainless Steel #6 x 5/8" mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 6.625in (168.28 mm) |
| Width | 4.625in (117.48 mm) |
| Depth | 1.75in (44.45 mm) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| Meets the following Regulatory Specifications |
|---|
